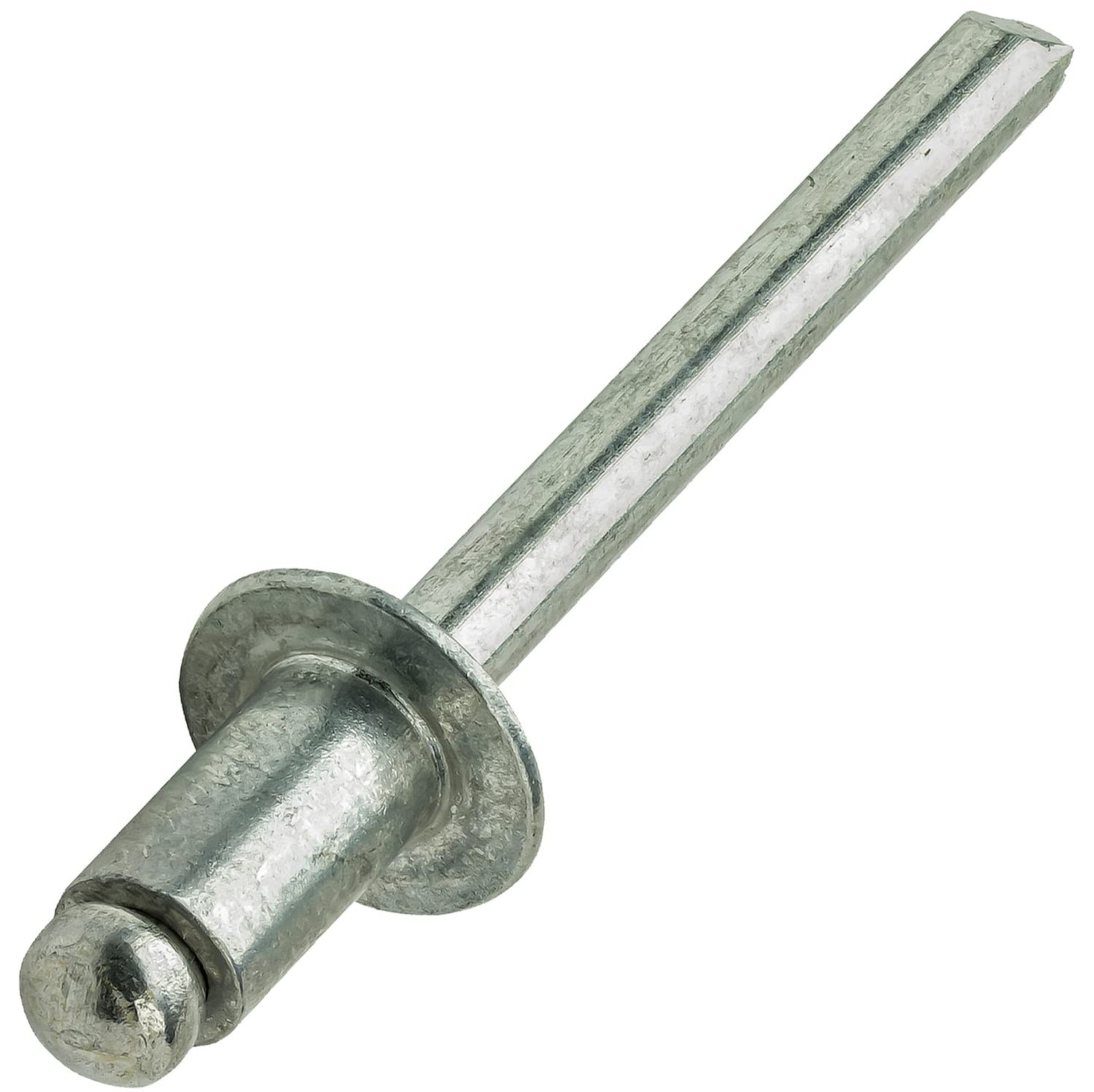

Aluminum Pop Rivets 1/4' x 1/8' Dome Head Blind 8-2 Gap .020-.125 Pack of 1000 Fastener Set LS21539F

Aluminum Pop Rivets 1/4' x 1/8' Dome Head Blind 8-2 Gap . 020-. 125 Qty 1000Open end blind rivets are tubular rivets with a mandrel through the center. The entire rivet assembly is inserted into a hole drilled through the parts to be joined, and a specially designed tool is used to draw the mandrel into the rivet. This expands the blind end of the rivet and snaps off the mandrel. General Product InformationRivet Trade Size : 8-2Rivet Size : 1/4' x 1/8'Drill Bit Size : Letter FHead Style : Dome HeadBody Material : AluminumMandrel Material: AluminumQuantity of Rivets in Package : 1000Detailed Product Information:Head Diameter : . 525'Head Height : . 08'Barrel Length : . 375'Grip Range : . 020' - . 125'Specification Met : SAE J-1200Shear Strength : 460 lb minTensile Strength : 560 lb minMandrel Break Load : 1400 lb maxKey Notes:Dome head is the most commonly specified rivet head style because of its low profile and clean finished appearance. It is slightly rounded and twice as wide as the rivet body diameter. Made of Aluminum Alloy 5050, 5052, or equivalent. Aluminum alloys have excellent corrosion resistance. The aluminum mandrel is pulled into or against the rivet body, breaking at or near the junction of the mandrel shank and its upset end. Aluminum/Aluminum rivets have the lowest tensile and shear values of all break mandrel rivets. An aluminum blind fastener which has a self contained mechanical feature (a mandrel) which permits the formation of an upset on the blind end of the rivet and expansion of the rivet shank during the setting to join the component parts of an assembly branded open end blind pop rivets meet SAE J-1200 Standards which establishes the dimensional, mechanical, and performance requirements of inch and metric break mandrel blind rivets suitable for use in joining the com

Item details

• ASIN : B09Y3NLFKZ
• Brand : NewPrMScrews
• Manufacturer : NewPrMScrews
• Model : LS21539F
• Part Number : LS21539F

Style

• Item Shape : Dome
